We produce for your health.

Ethylene Oxide Sterilization Devices with Under-Vacuum Working Principle for All kinds of Medical Materials, Absorbable and Non-Absorbable Sutures, Medical Textile products, etc.


ETO C-1445 Industrial Ethylene Oxide Sterilization Device for Professional use of 1-5-10-15... 62-90 m3 and above.

Industrial Ethylene Oxide Sterilization Device

The World's Largest Manufacturer of Ethylene Oxide Sterilization Devices:

TEKNOMAR

62.5 m3 + 62.5 m3

62.5 m3 + 62.5 m3 ile dünyanın en büyük EO etilen oksit sterilizasyon cihazı üreticisi: Teknomar

EO C-1445 Industrial Ethylene Oxide Sterilization Device

For Professionals, 1-5-10-15... 62-90 cubic meters and more.


All kinds of Medical Materials, Absorbable and Non-Absorbable Sutures, Medical Textile products, etc.

Ethylene Oxide Sterilization Devices with Under-Vacuum Working Principle

Industrial Type ETO Sterilizer ETO-C 1445 is the best solution partner for medical equipment manufacturers. Many of the items which are sensitive to heat and moisture can be sterilized with EO gas Sterilization. Bulk product manufactures usually cannot find the best choice for sterilizing their products. ETO-C 1445 comes with different M3 options and will be your main asset of your production line

Teknomar Ltd facilitates the senior engineers and technicians for the professional projects. Tailored manufacturing is made by our highest grade of stainless steel materials and find a way of magnificant products.

Teknomar C1445 Endüstriyel Tip ETO Sterilizatör

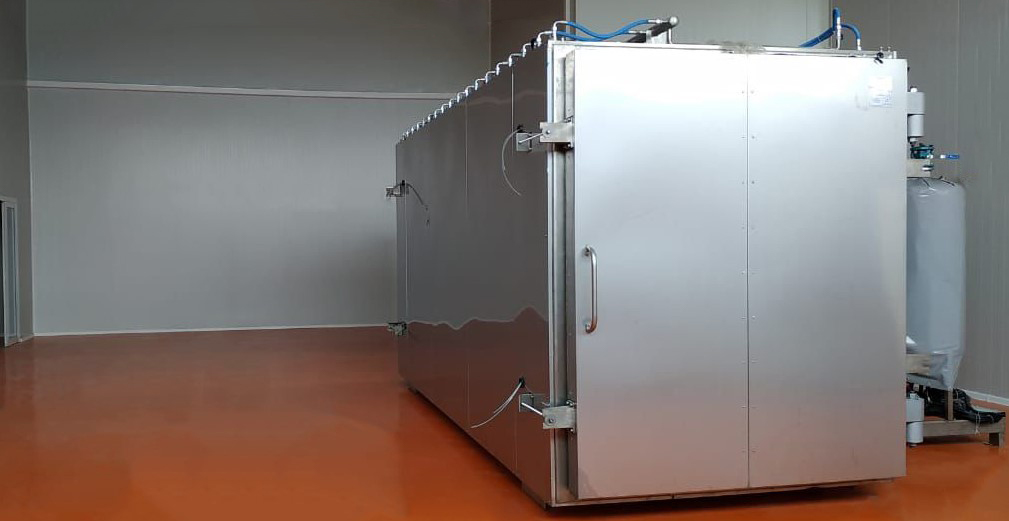

20 m3 Teknomar End Eto C1445 Sterilizatör

Teknomar Industrial Ethylene Oxide Sterilization Device Pallet Loading & Unloading

Teknomar Ltd has undertaken professional projects with its experienced engineers and technicians. Standard and Special Edition devices are manufactured from the highest quality stainless steel.

Teknomar Ltd has strong experience in the sterilization of disposable medical products, absorbable and non-absorbable sutures, catheters, laparoscopic surgical instruments, implants, sensitive flexible medical products, endospositives, rigid and semi-rigid lumen shaped instruments.


ETO C1445 Main Features

  • 37-55 Cº Operating Temp – Negative Pressure Working Principle
  • Sterilizes Humidity and Heat Sensitive Products
  • All Stainless Steel Chamber and Parts (316L/304)
  • Single or Double Door Selection
  • Fireproof High-Tech Electronic Parts
  • SCADA Process Control
  • Compliance with EN 1422 – ISO 11135 norms
  • CE marked
  • Compatible With Different EO Gas Mixtures
  • Multifunctional Chamber: Preconditioning, Gassing, Aeration in One Chamber
  • Complete Dissolution of EO Gas by Enhanced Neutralization Technique - Water Scrubber Method
  • Safe, Reliable, Accurate and Durable Sterilization Solution
  • Detailed Reporting Function
  • Easy Loading and Unloading Roller Systems
  • Validation and Calibration Guaranteed For Different Products
  • 6 - 8 Hours of Sterilization Duration
  • Easy to Operate with Full Colored Wide Touch Screen Panel
  • PLC Process Controlling
  • Printer
  • Personal Safety Features

ETO C1445 Usage Areas

15 M3 Industrial Ethylene Oxide Sterilization Device

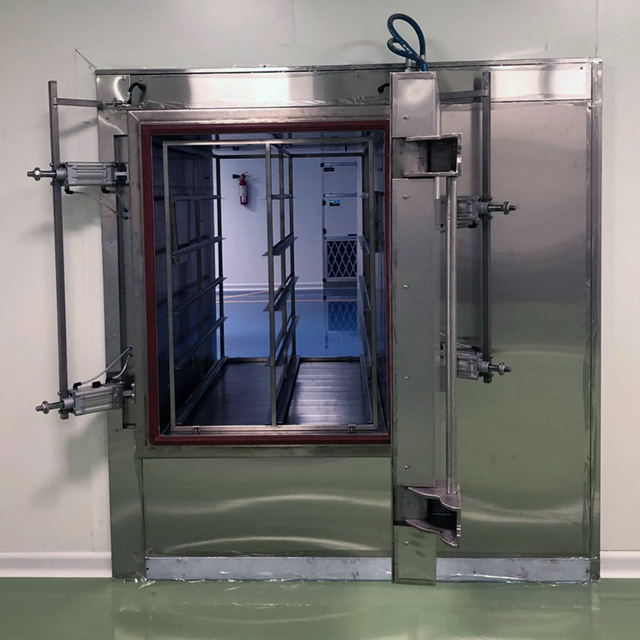

Ethylene Oxide Suture Sterilization Device
  • All kinds of Medical Materials,
  • Absorbable and Non-Absorbable Sutures,
  • Medical Textile Products,
  • Disposable Medical Products ...

ETO - C 1445 has a compact design with one-piece built-in for the user to use for multifunctional purposes. The device allows the user to program different parameters for sterilization of multiple products.

In the low-tech devices used today, users have to use separate devices for pre-conditioning and ventilation of the products (Bag and Bulb Breaker, Sub-Vacuum Old Technology). This increases the workload of employees, sterilization time and sterilization cost.

ETO-C 1445 offers a new technique in which preconditioning, sterilization and aeration are performed by only one device.

When the sterilization processes are completed with ETO C 1445, the sterilized products can be used immediately without the need for extra ventilation, since there is no EO gas residue on the products.

ETO - C 1445 reduces all possible costs to give you optimized economies of scale. Teknomar Ltd provides you validation and calibration services for different materials. Although the average sterilization time is 6 hours, this time may be lower or higher depending on the FAT (Factory Acceptance Test) of the material to be sterilized. Teknomar Ltd. employs its best programmers and technicians to adjust the device to the optimal sterilization level, taking into account sterilization cycle costs and sterilization accuracy..



TEKNOMAR ETO C-1445 Ethylene Oxide Sterilization Device Standard Boiler Dimensions

Industrial Type EO Sterilization Device
C-1445 		Ethylene Oxide Sterilization Device
Boiler Internal Dimensions
Weight
(~kg)
Rated Power
(kW)
Boiler Volume
(~m3)		 Loading
Number of Pallets		 Door Width
(cm)		 Depth
(cm)		 Height
(cm)
0,5 Suture - Single 82,5 74 82,5 960 10 kW
1 - Single 90 110 100 1450 21 kW
1,6 Suture - Single/Double 90 158 113 2000 25 kW
2,1 Suture - Single/Double 90 160 140 2500 30 kW
2 - Single 120 120 140 1900 25 KW
5 - Single 135 275 135 2800 50 kW
6 2 Single/Double 135 190 235/240 3500 50 kW
10 4 Single/Double 180 260 220 5800 60 kW
15 6 Single/Double 180 390 220 6600 70 kW
20 8 Double 180 520 220 8500 70 kW
27 10 Double 180 640 235/240 10000 75 kW
34 12 Double 180 780 240 12000 80 kW
40 14 Double 260 640 240 14500 100 kW
44 16 Double 260 705 240 15500 110 kW
50 18 Double 260 800 240 17000 120 kW
62,5 24 Double 260 1010 240 21000 140 kW
62,5 and more...

* The above dimensions show standard production. Production in special sizes is available. Please contact your representative for more information.

* Pallet size: EURO 80 X 120 cm

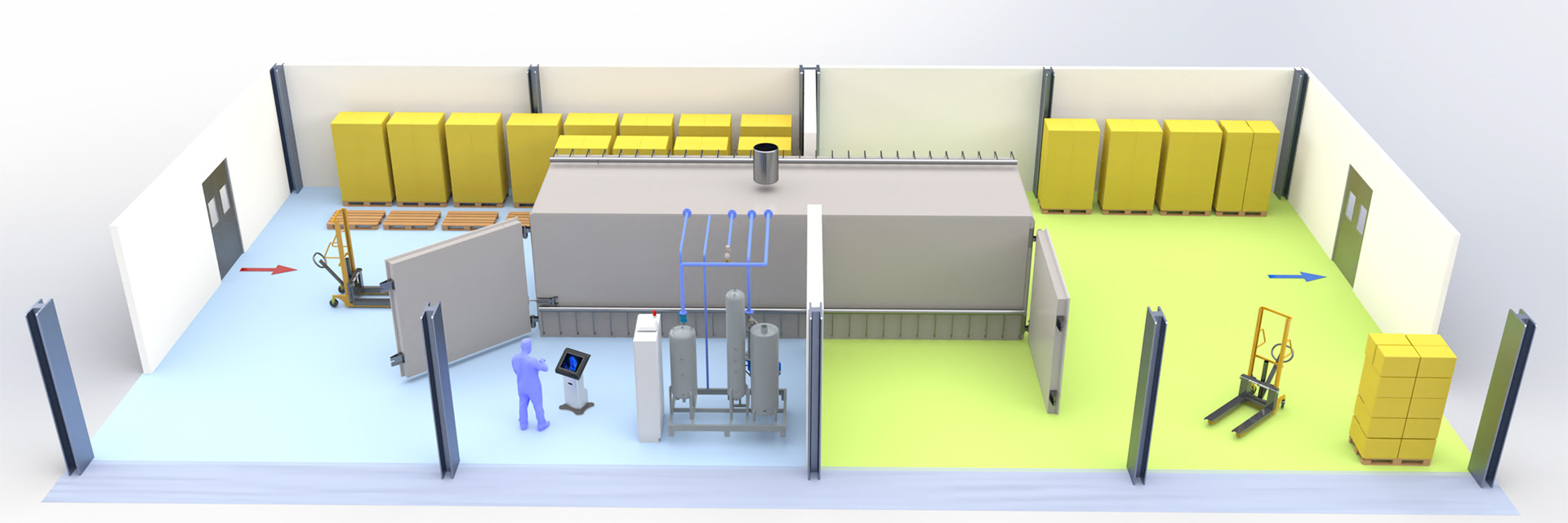

Industrial Ethylene Oxide Sterilization Device Factory Layout Plan

Superior Feature:
In Teknomar End ETO C1445 Sterilization Device, Preconditioning, Sterilization with EO Gas, and Aeration are done in the same boiler.

Industrial Ethylene Oxide Sterilization Device Layout Plan

Industrial Ethylene Oxide Sterilization Device Working Process and Reporting

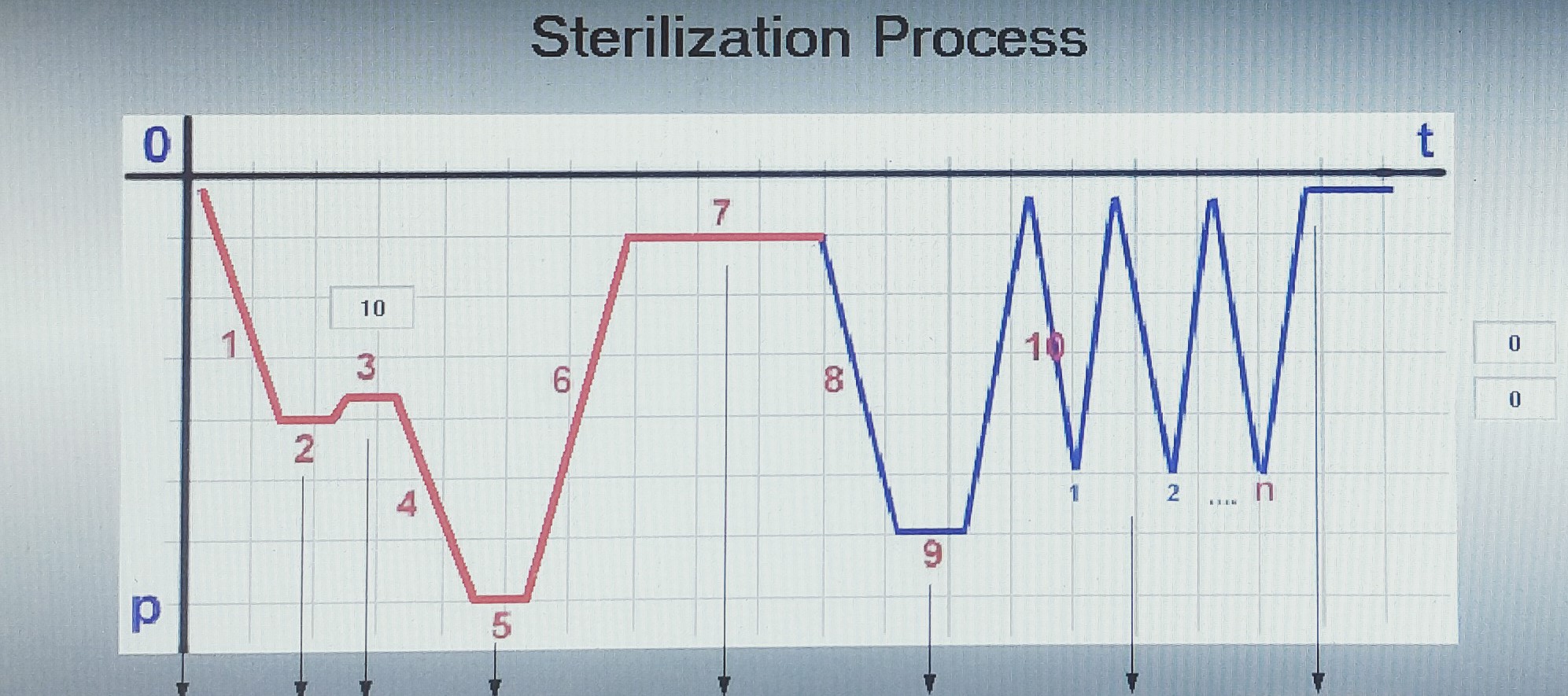

Teknomar Industrial Ethylene Oxide Sterilization Device, EO Gas Sterilizer, Autoclave Working Diagram
Teknomar Industrial Ethylene Oxide Sterilization Device Working Diagram

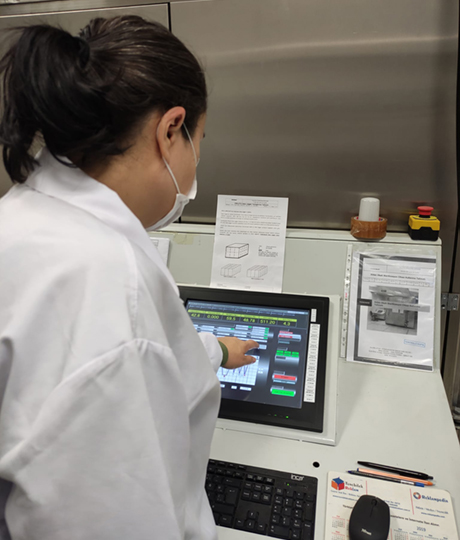

Teknomar Industrial Ethylene Oxide Sterilization Device Kiosk Management Panel
Kiosk Management Panel
  • Vacuum 1: Before starting the device sterilization process, a leak test is performed under vacuum.
  • Leak 1 Period: After the first vacuum process, there is a leak test waiting period. At the end of this period, the vacuum level in the tank will be measured and it will be checked whether there is a change in the pressure/vacuum value, leakage or leakage. In case of leakage or leakage, the device does not start the sterilization process. It gives a leak warning. If the leak test is passed successfully, the EO sterilization process begins.
  • Humidity / Preconditioning:After the leakage test is successfully completed, preconditioning is performed by removing moisture from the device.
  • Vacuum 2 Period:The device performs the bottom vacuum process after the preconditioning is completed. Secondary subvacuum conditioning continues.
  • Leak Test 2: After the bottom vacuum and conditioning process is completed, the device performs a second leak test for high security. During this period, it waits without taking any action, and at the end of this period, the sterilization process begins with gas intake.
  • Gas Intake: The sterilization phase begins with EO gas inlet. In this process, EO gas is removed until the safe vacuum value in the device is reached. The sterilization process begins.

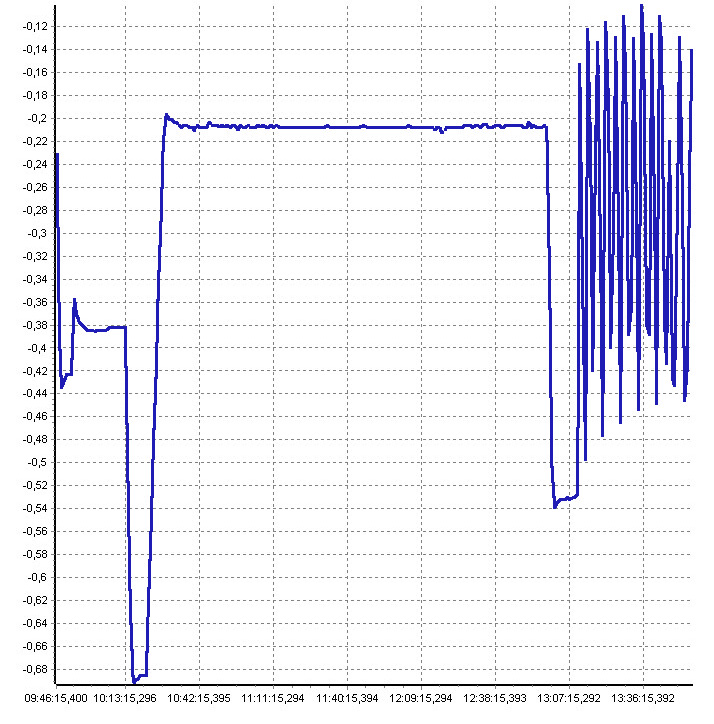

Vacuum Operating Chart
END ETO Device Vacuum Working Chart
EO Sterilizasyon Raporlaması

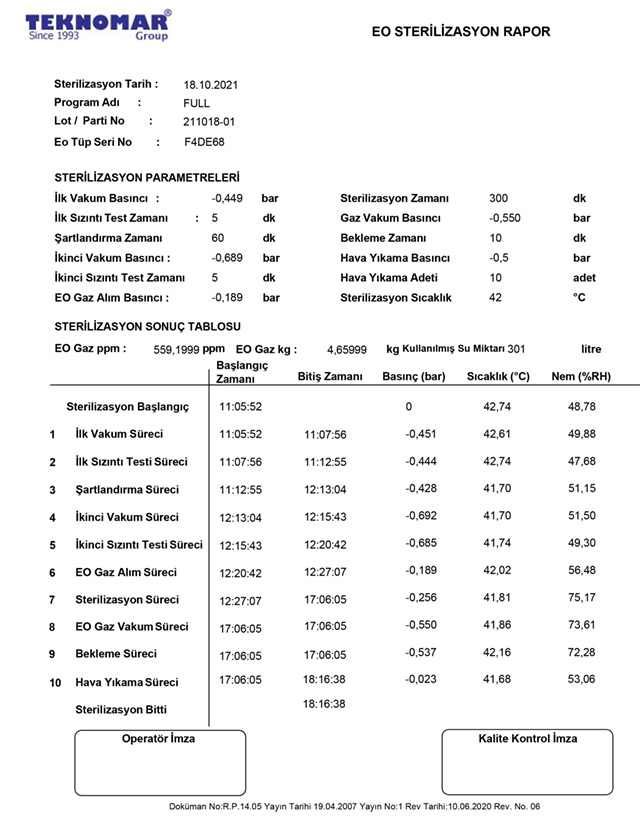

EO Sterilization Reporting Compliant with MDR
  • Sterilization Period: Sterilization period is the most important and longest part of the system. The products in the device are exposed to gas during this period. In this process, sterilization is carried out.
  • Exhaust Vacuum: After the sterilization period is completed, the EO gas in the device is evacuated by vacuuming. Gas is neutralized with the aqueous neutralization system and exhaust is made. The dilution period starts when the bottom vacuum value of the sterilization vessel is reached.
  • Rest:After the gas in the device is released, the sterilized products are diluted. After the dilution waiting period ends, the sterile air washing process begins.
  • Washing with Fresh Air: After the waiting period to clean the EO gas in the device, air washing is performed to prevent any residue on the sterilized material. At the end of the air washing process, atmospheric pressure is reached and the lids are allowed to be opened.
  • Number of Washing, Entering the Number of Washing: For the air washing process, there are a minimum of 3 air washing programs as a fixed value in the sterilization work program. Apart from this, the user is given the opportunity to enter a value between 1-99 for the air washing number.
  • Temperature: The device can be adjusted to the desired temperature between 37 C - 55 C degrees. The device keeps the temperature at the set value constant during operation and sterilization.

Industrial Ethylene Oxide Gas Mixtures

ETO C 1445 EO Ethylene Oxide Gas Tube, Cylinder, Balloon

Different Ethylene Oxide Gas Mixtures Can Be Selected According to the Validation of the Material to be Used in the ETO C-1445 Sterilization Device. Some;

  • % 10 EO - % 90 CO2
  • % 50 EO - % 50 CO2
  • % 90 EO - % 10 CO2
  • % 100 EO

Ethylene Oxide Device Boiler Production Stage

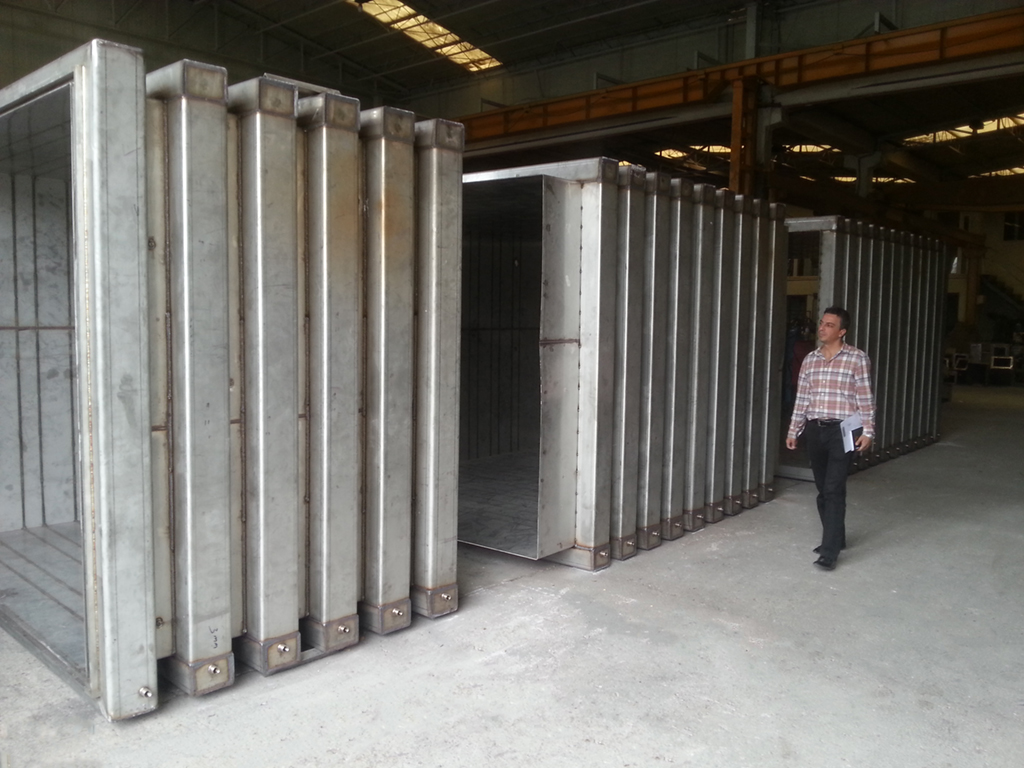

62,5 m3 Ethylene Oxide Sterilization Device Production Area

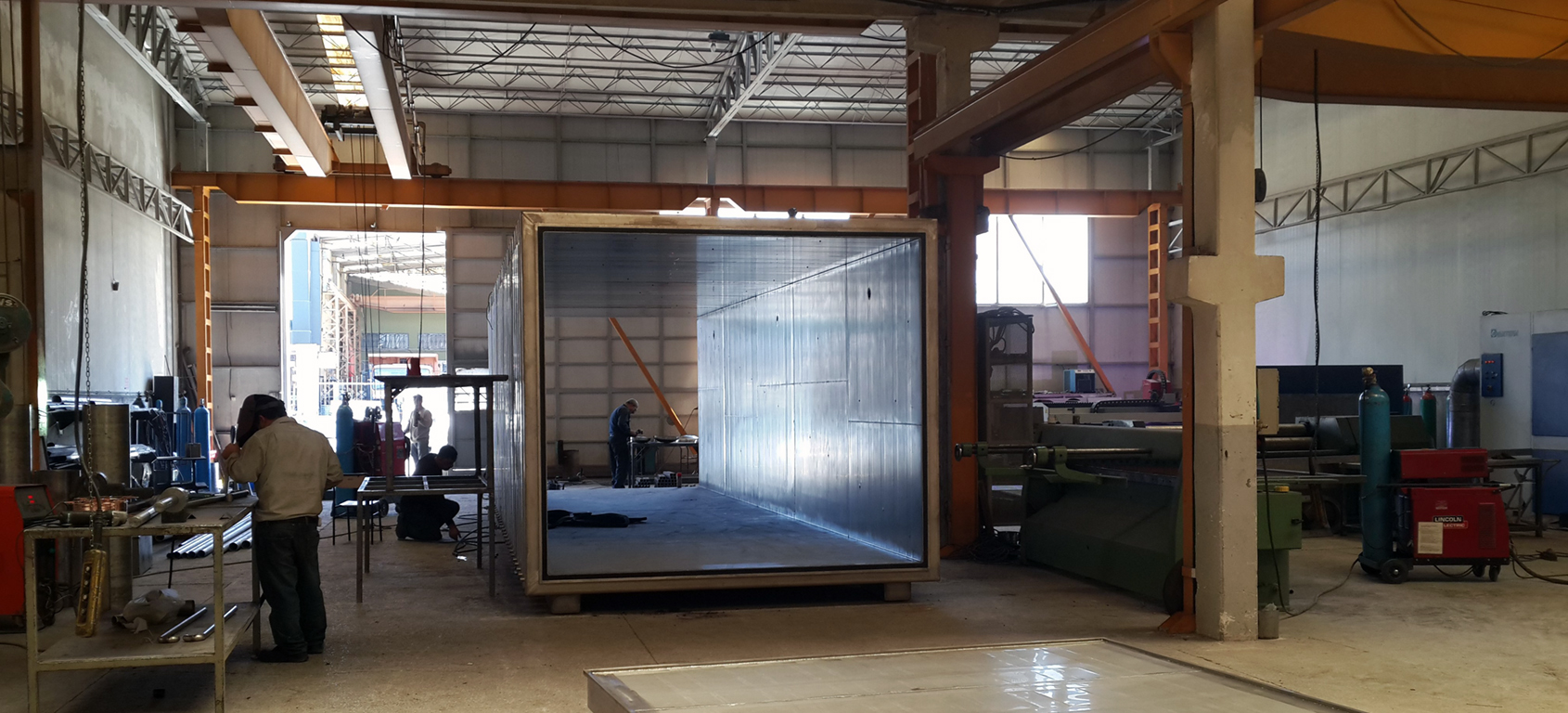

Ethylene Oxide Sterilization Device Production Area

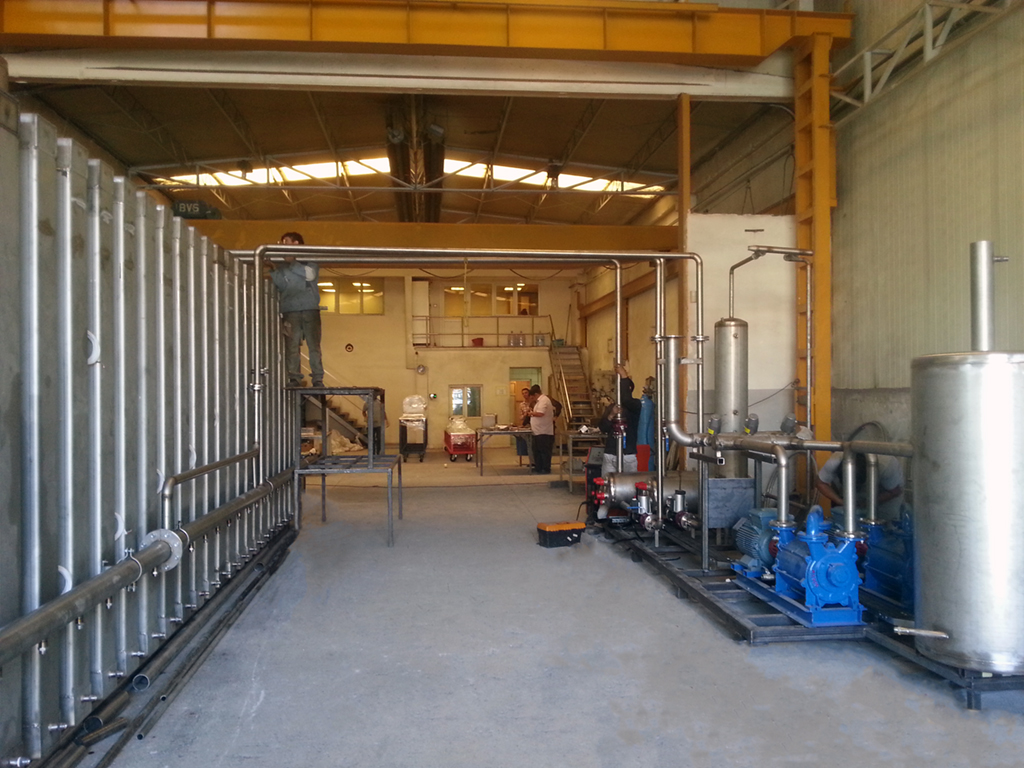

Ethylene Oxide Sterilization Device Production Area

Ethylene Oxide Sterilization Device Production Area


ETO C1445 Ethylene Oxide Device Maintenance

ETO - C 1445 maintenance is simple and easy and does not require professionalism. Daily and routine maintenance can be easily performed by the trained user.

Teknomar Ltd provides design, manufacturing, assembly, training, service, validation and related services to its customers.



Teknomar Ltd Collaborates with the Well Known Machinary Manufacturers
Teknomar Some Materials Used in ETO C1445 Device

Siemens, Festo, ABB, AdvanTech, Oksitem, New Kromsan, Schneider, Phoenix, Reliance
